Hero Transitions with Xcode 10 and Swift 4.2

“Hero is a library for building iOS view controller transitions. It provides a declarative layer on top of the UIKit’s cumbersome transition APIs — making custom transitions an easy task for developers.”
—Hero’s GitHub ReadMe

I’ve tried searching on Google so many times but couldn’t find any up to date tutorial. I’ve decided to make my own tutorial. So, here we go.

Let’s Start

I am passing the installation stuff because it’s really well explained on the Hero’s documentation pages. Insted we will start with code. I am saying code because I am not using Storyboards for almost a year. (Thanks to @buildthatapp)

Creating Simple UI (Without Storyboard)

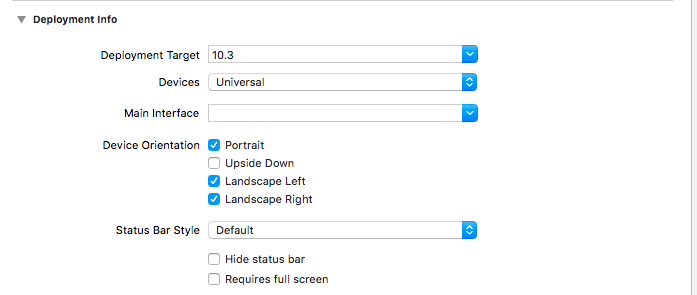

After the “pod install” and “open myapp.xcworkspace” first thing we will do is deleting “Main.storyboard” from Targets -> General -> Deployment Info -> Main Interface.

If we run the app, it will show black screen. Because we don’t have UIWindow yet. (Actually it is ‘nil’ now.)

So let’s figure that out.

func application(_ application: UIApplication, didFinishLaunchingWithOptions launchOptions: [UIApplication.LaunchOptionsKey: Any]?) -> Bool {

        window = UIWindow(frame: UIScreen.main.bounds)
        window?.makeKeyAndVisible()

        let viewController = ViewController()
        let navigationController = UINavigationController(rootViewController: vc)
        navigationController.hero.isEnabled = true // Just add that. We will explain that later.
        window?.rootViewController = navigationController

        return true
}

Simply, we created UIWindow and made it main screen.
Created viewController's instance.
Created a navigationController because we will need that later.
navigationController's hero is enabled. (I will explain that later.)
Last but not least, from now on, our rootViewController is navigationController

Creating First ViewController

We will create a UIView with UIColor.green backgroundColor.

lazy var greenView: UIView = {
  let v = UIView()
  v.backgroundColor = .green
  return v
}()

We will enable hero on ViewController():

self.hero.isEnabled = true

Next, give our greenView, hero.id:

greenView.hero.id = "greenView"

Let’s say we want to use UINavigationController. We need to enable hero on navigationController too (did you remember the AppDelegate.swift?):

// AppDelegate.swift
navigationController.hero.isEnabled = true

And lastly, added UITapGestureRecognizer for pushing UIViewController to UINavigationController.

Currently I am using “SteviaLayout” for AutoLayout. It’s worth checking out.

Our ViewController class looking like this:

//
//  ViewController.swift
//  learnherotransitions
//
//  Created by Onur Geneş on 29.06.2018.
//  Copyright © 2018 Onur Geneş. All rights reserved.
//
import UIKit
import Stevia
import Hero

class ViewController: UIViewController {

    lazy var greenView: UIView = {
        let v = UIView()
        v.backgroundColor = .green
        return v
    }()

    override func viewDidLoad() {
        super.viewDidLoad()

        greenView.hero.id = "greenView"

        greenView.addGestureRecognizer(UITapGestureRecognizer(target: self, action: #selector(openSecondVC)))

        view.backgroundColor = .white

        view.sv(
            greenView
        )

        greenView.height(50).width(50).centerInContainer()
    }

    @objc func openSecondVC() {
        let nc = UINavigationController(rootViewController: SecondViewController())
        nc.hero.isEnabled = true
        self.navigationController?.pushViewController(SecondViewController(), animated: true)
    }

}

Next, we will create SecondViewController very similarly;

Create a new greenView
Give a hero.id
We will enable hero with self.hero.isEnabled = true
Add UITapGestureRecognizer for poping UIViewController from UINavigationController

//
//  SecondViewController.swift
//  learnherotransitions
//
//  Created by Onur Geneş on 29.06.2018.
//  Copyright © 2018 Onur Geneş. All rights reserved.
//
import UIKit
import Stevia
import Hero

class SecondViewController: UIViewController {

    lazy var greenView: UIView = {
        let v = UIView()
        v.backgroundColor = .green
        return v
    }()

    override func viewDidLoad() {
        super.viewDidLoad()

        self.hero.isEnabled = true
        greenView.hero.id = "greenView"

        view.backgroundColor = .blue

        greenView.addGestureRecognizer(UITapGestureRecognizer(target: self, action: #selector(popVC)))

        view.sv(
            greenView
        )


        greenView.height(150).width(150).centerHorizontally().centerVertically(300)

    }

    @objc func popVC() {
        self.navigationController?.popViewController(animated: true)
    }
}

And we’re done.

Let’s Run, Finally

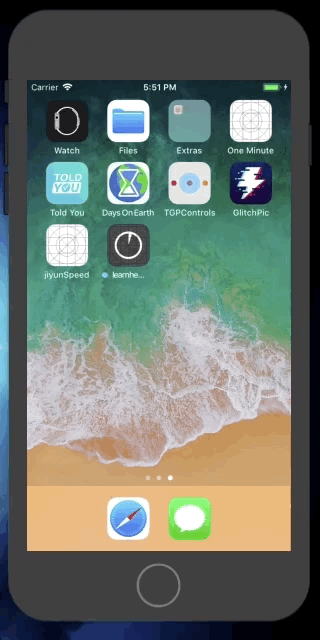

Let’s run the app and see our final result:

Let me know what you think!
